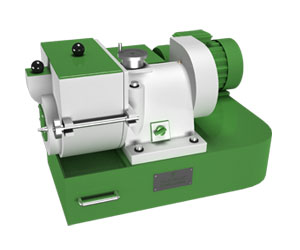

Laboratory Pulverizer Disc Mill

Pulverizer Disc Mill

Star trace is one of the worlds leading manufacturer, supplier and exporter of Pulverizer disc mill. Star Trace Pulverizer disc mill is used for grinding the material with any kind of hardness with fine particles in continuous or intermittenly.


Star trace Pulverizer disc mill is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemical, environment-friendly department, scientific research and so on.


Advantages:
  • Rapid grinding by friction force.
  • Full-sealed design and no dust pollution which meet environmental protection requirements.
  • Low working noisy and easy for sample collecting.
  • It can work normally on the flat ground without fixing any base.

Specification - STPD- 01 - Lab
FEED SIZE: 15mm Max.
FINAL GRAIN SIZE: Less than 200 micron.
MATERIAL OF GRINDING DISC: Hardened Steel.
MAIN MOTOR DRIVE: 2.2Kw (3 H.P).
RPM: 1400-1500 RPM.
POWER REQUIREMENT: 4 pole,16amp MCB( 3 phase,440V+ Neutral with earthing),AC,50/60Hz.
GRINDING DISC GAP SETTING: 0.2 to 5.00 mm (adjustable type).
DUST EXTRACTION SYSTEM: Included in the unit.

Note:
  1. Technical data specification subject to change.
  2. Special Pulverizer Disc Mill of different sizes and capacity can be made on request, Please send us Your’s Technical data and application, required for our engineers to provide.
