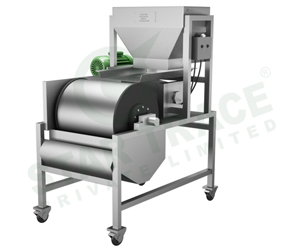

Laboratory Electro Magnetic Drum Separator (Dry Process)
Electro Magnetic Drum Separator consists of a rotating non-magnetic drum containing electromagnet. Magnetic particles are attracted by the magnets, pinned to the drum, conveyed out of the field and discharged while the nonmagnetic particles are discharged unaffected. The magnetic drum is fed at the top vertical centre, but, with appropriate magnet positioning, it can be fed at any convenient point or even front fed or under fed.
Specification:
Model |
STDMS-300 |
STDMS -240 |
|
Magnetic impeller size |
mm |
F400×300 |
F400×240 |
Rotating speed |
r/min |
25 |
25 |
Intensity |
GS |
1250 |
1250 |
Separating size |
mm |
2 |
2.5 |
Capacity |
kg/h |
20~60 |
20-50 |
Power |
kw |
0.25 |
0.25 |
Voltage |
v |
380 |
380 |
Exciting voltage |
sets |
1 |
1 |
Overall dimensions |
mm |
1515×1040×1500 |
1030×614×1196 |
Weight |
kg |
300 |
200 |
